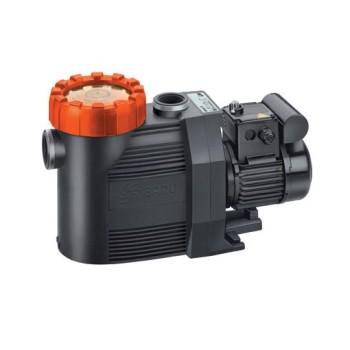

PUMP SPECK BADU Prime Eco VS INVERTER

  • Brand: BADU
  • Product Code: PRIME ECO INVER
  • Availability: In Stock
1,505.36€ Ex Tax: 1,214.00€

230V | 0-24m3/h | 1.1kW

This circulation pump combines the successful construction of the BADU Prime with a synchronously compact power unit to create a
highly efficient power packet with space-saving construction. A built-in control panel and easy to navigate menu provide for
simple management of the motor. Can be controlled using the BADU Eco Logic remote control.<br>
The pump is delivered ready for connection with a 5-wire control cable, cable and plug.

Field of application
Swimming pool water circulation through a filter system. The pump can be installed max. 3 m above or below water level.

Design
Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve.
Motor/pump shaft has no contact with the pool water providing complete electrical separation.

  • Strainer basket PP
  • Mechanical seal carbon / ceramic / NBR
  • Pool type Naturpool / Schwimmteich
  • Filter size in mm 400 – 500
  • Strainer basket in mm approx. 3,2 x 2,6
  • Strainer capacity in l approx. 3, approx. 3
  • Intermediate housing PP TV 40, PP TV 40
  • Gland housing PP TV 40, PP TV 40
  • Impeller PP GF 30
  • Pump casing PP GF 30
  • Screws stainless steal
  • Class PREMIUM
  • Motor performance in kW (P2) 1,10
  • Pool size in m³ 30 – 90, 30 – 90

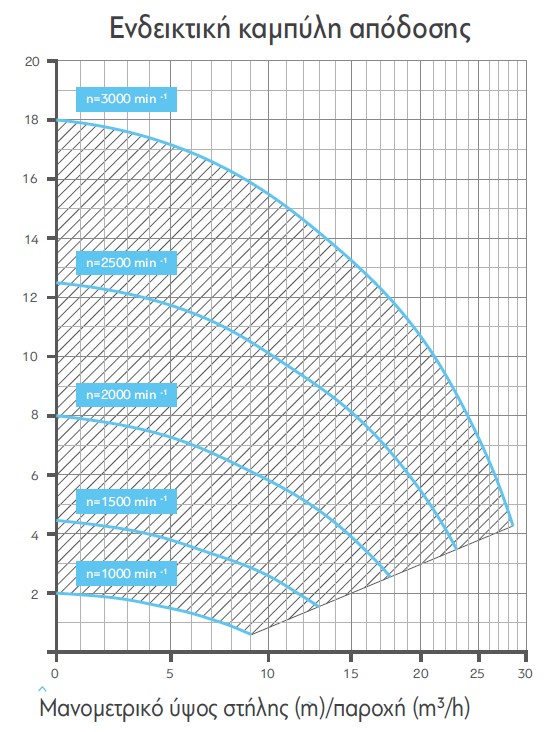

  • Flow rate Q in m³/h max. 28
  • Total head H in m WS max. 18
  • Lid PC, transparent / PA 66 GF 30, PC, transparent / PA 66 GF 30
  • Diffuser PA 66 GF 30

Imagem

Imagem
