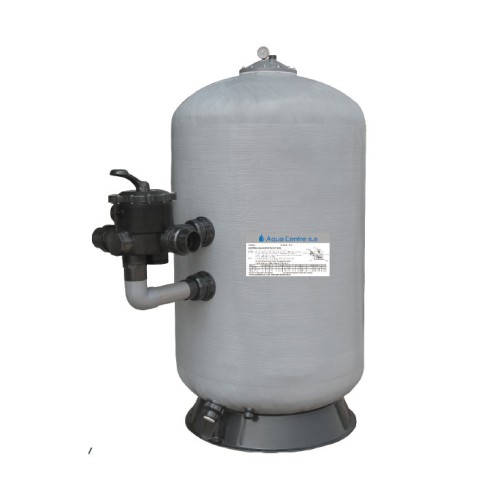

HIGH EFFICIENCY POOL FILTER

High refining sand filter with monoblock shell made of polyester and reinforced
from fiberglass according to the method of continuous winding of impregnated polyester which gives
unmatched mechanical resistance to the filter (2.5 / 3.75bar).

Techn. Characteristics

• Max water temperature: 50oC
• Operating pressure: 0.5-2 bar
• Maximum pressure: 2.5 bar
• Pressing test: 3.5 bar
• Connection: 1.5-2
• Filter body: fi berglass-bobbin plag
• Accessories: FV / PP / ABS or PVC
• Filtration speed: 40 m3 / h / m2
• Sand granulometry: 0.5-0.9mm
• Sand granulometry: 1-2mm
• Filling material: Sand-Quartz or Sand-Glass hydrocarbon or AFM.

MULTI PORT VALVE INCLUDED
